Description

• ATEX & IECEx approval, Ⅱ 1 G Ex ia Ⅱ B T4 Ga

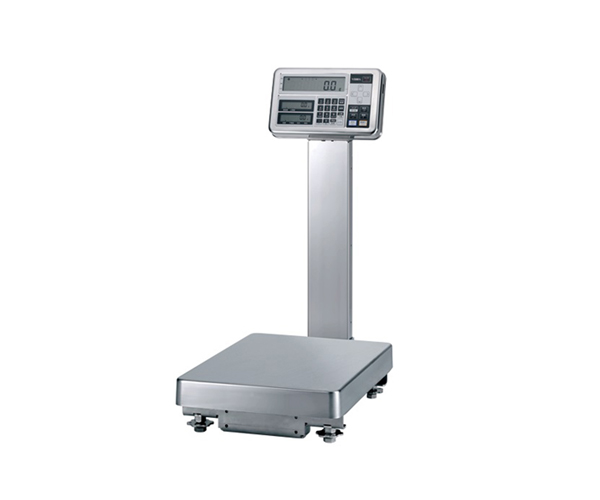

FZ series has ATEX and IECEx approval for weighing operation in explosive hazardous area.

• High Capacity and High Precision – Two in One

With FZ 300K1GF model, you can measure up to 300KG with 1g readability, which satisfies two demands in single unit, high capacity and high resolution. Unique technology “tuning-fork” sensor enables “two-in-one” feature. This unique technology also ensures excellent weighing performance and long-term stability even in tough Ex environment.

• Reliable measurement for every process in Ex environment

FZ series helps your daily weighing operation in every process in Ex environment. With weighing range from 620g to 300kg and minimum read-out 1mg.

• Selectable indicator, i02

You can choose one of two indicators, i02 type and i03 type. i02 type is simple indicator with single display.

• Selectable indicator, i03

You can choose one of two indicators, i02 type and i03 type. i03 type has two sub-displays in which two additional information can be indicated (tare weight, gross weight, lower and upper limit, etc..).It make weighing operation easier and more comfortable.

• IP65 water & dust proof, easy to clean

All models in FZ series have IP protection (rating 65) which allows FZ to be used in tough environment. After daily operation you can wash FZ with water and keep balance in clean condition.

• Optional output and extended cables

Various kinds of output and cable extension are provided as option. Please see “FZ output options configurations” and “FZ cable configurations” in Download section.

Common Specification
