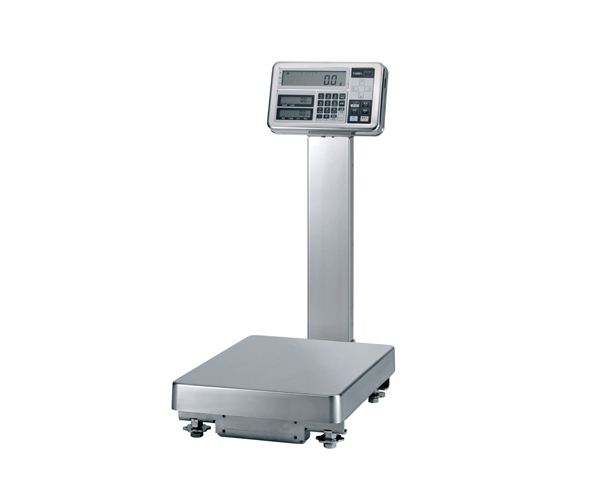

Platform Scale
High precision weighing for every process in the manufacturing
Capacity：620g〜300kg／Readability：0.001g～1g
Features
- High precision weighing in manufacturing process
- Wide weighing range from 620g up to 300kg
- IP65 water and dust proof
- Dry-cell battery drive as standard feature
- OIML and EU class2 approved
Description
- High Capacity and High Precision – Two in One
FS series attains high capacity and high precision in single unit. With FS 300K1GF model, you can measure up to 300KG with 1g readability, which satisfies two demands in single unit, high capacity and high resolution. Unique technology “tuning-fork” sensor enables “two-in-one” feature. This unique technology also ensures excellent weighing performance and long-term stability even in tough condition.
- Reliable measurement for every process in manufacturing
FS series helps your daily weighing operation in every process in manufacturing line. With weighing range from 620g to 300kg and minimum read-out 1mg, FS can cover every process, in-bound material control, production, inspection and out-bound control, etc…
- Selectable indicator, i02
You can choose one of two indicators, i02 type and i03 type. i02 type is simple indicator with single display.
- Selectable indicator, i03
You can choose one of two indicators, i02 type and i03 type. i03 type has two sub-displays in which two additional information can be indicated (tare weight, gross weight, lower and upper limit, etc..).It make weighing operation easier and more comfortable.
IP65 water & dust proof, easy to clean
All models in FS series have IP protection (rating 65) which allows FS to be used in tough environment. After daily operation you can wash FS with water and keep balance in clean condition.
- Dry-cell battery drive
FS series can be operated with dry-cell battery as well as with power supply from AC adaptor.
Dry-cell battery drive
Common Specification
| Tare | Zero to Full weighing range |
|---|---|
| Span adjustment | Manual operation Span Adjustment with external calibration weight |
| Ingress Protection Rating | IP65 |
| Over error | “o-Err” showed when Full weight range + 9 more digits over |
| Temperature and humidity range | 5 ～ 40℃、Up to 85％ rh(without the dew condensation) |
| Power source | AC adapter Input 100-240VAC / Output 6VDC and dry-cell battery *1 |
| Output | RS232C(Dsub 9Pin)+Printer out put(Din 8Pin) |
| Scale cable length | 5m for FS 150K1GF and 300K1GF.1m for all other models. *2 |
