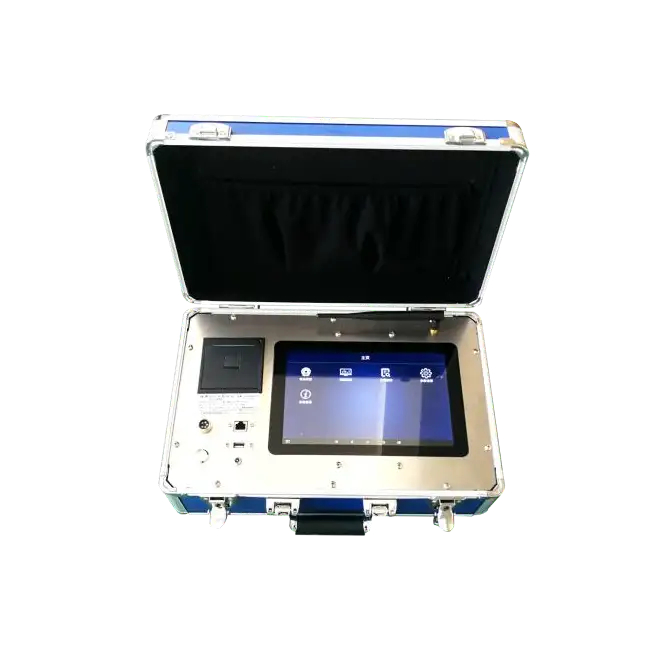

- 255 wireless static colour touch screen indicator
- Adopting 10.1-inch Android colour touch screen display, high-end and practical
- Can use touch input operation and wireless mouse operation, simple and fast
- Multiple working modes (traffic police, road administration, comprehensive) are available
- Dual-channel design, using high-precision integral weighing platform, high detection accuracy, low failure rate
- Statistical analysis software, convenient for recording, statistics, and query; the database provides vehicle model information, policies and regulations, and technical support
- Data Output: RS232/485, USB two data interfaces
Description
Specifications:
|
Pad Size(mm) |
720x450x58 |
|
Ramp Size(mm) |
720x180x45 |
|
Pad Packing Size(mm) |
800x650x120 |
|
Ramp Packing Size(mm) |
730x190x180 |
|
Indicator Packing Size(mm) |
500x350x240 |
|
Indicator weight |
9kg |
|
Pad and packaging weight (one piece) |
46kg |
|
Ramp weight (two pieces) |
10.8kg |
|
Single pad capacity |
15T |
|
Allowed axle load |
30T |
|
Safe overload |
125% |
|
Static Accuracy |
0.1%~0.3% |
|

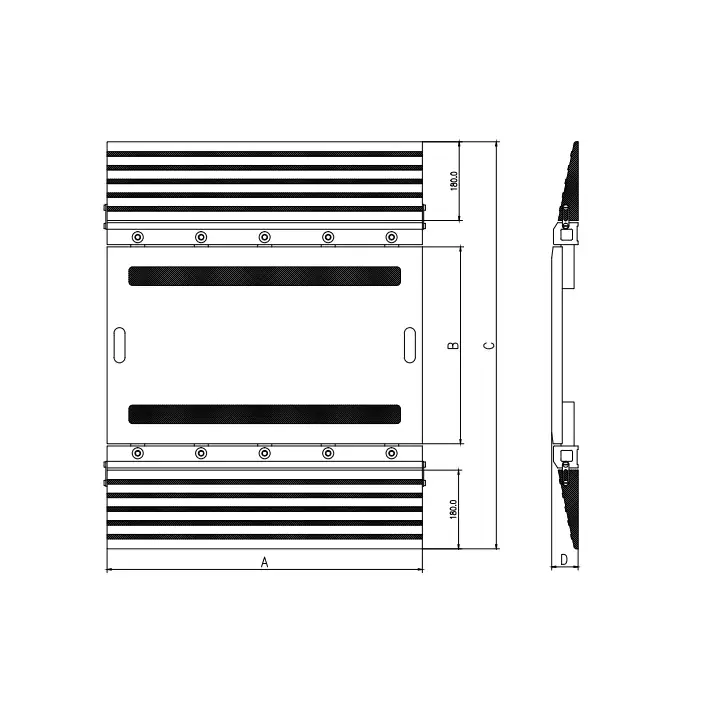

Weighing pad description |
advanced aviation aluminium pad, split type, with shear beam load cells, with rubber ramps |
